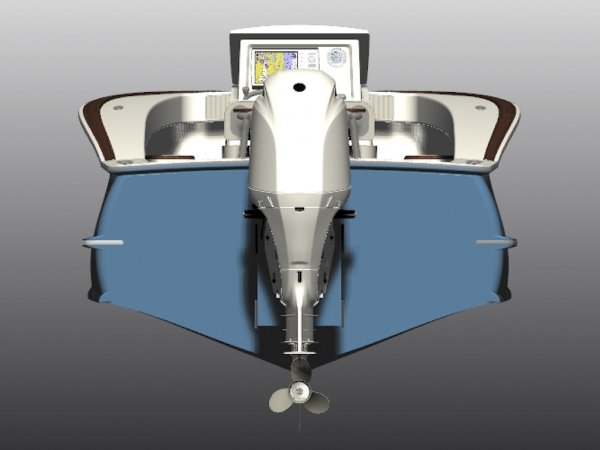

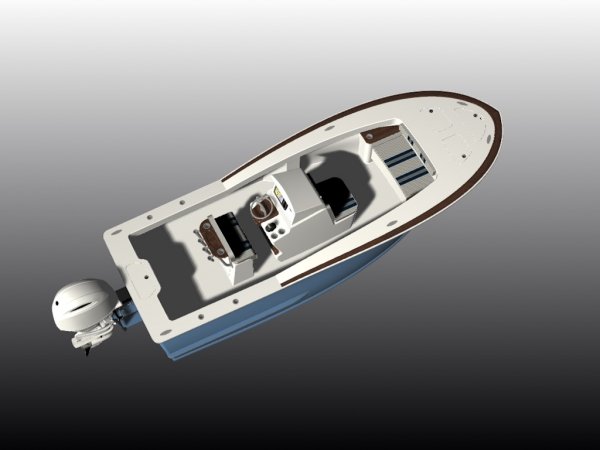

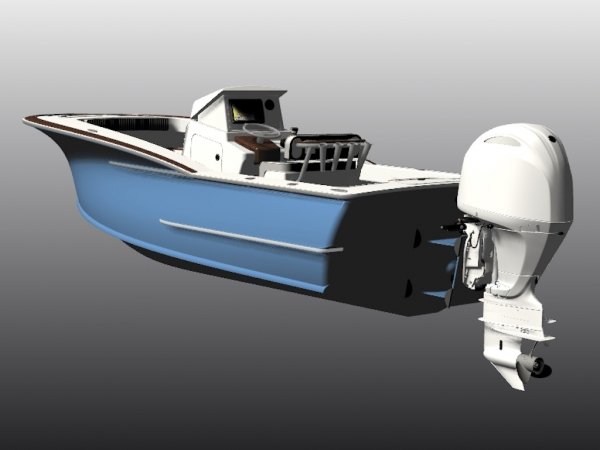

Our ENVI 19 "Mahi" got an update for 2017 and became a 20 footer. The first one is being built by a man with twin 9 year olds. That forward seat can be a number of things. If you are a hardcore fisherman, it might not work for you as it might be tough fighting a fish that you are chasing forward. If, however, family cruising is also one of your priorities, it might be perfect. When the weather is choppy, some flip-up seats aft might be a better ride. Speaking of flip-up seats, the forward seat could be just that. There when you want it and gone when you don't.
Key Features
- The point of 'custom' is HAVE IT YOUR WAY!
- Look better than any other 19' sport fishing boat!
- Easy to build! - Seriously! Check out the Builders' Forum. LOTS of pictures.
Specifications
Specifications, including hydrostatic information, are provided as a convenience only and may change without notice. These proposed targets are approximate and are heavily dependent on choices made during construction such as material weights and other subsequent factors such as engine size and loading of the vessel during actual use.
| Designation: | 20OCCOQ |
| Series: | Offshore |
| Centerline Length (Hull): | 20 ft 4 in / 6.2 m |
| Maximum Beam: | 7 ft 6 in / 2.3 m |
| Target Draft (Hull): | 18 in / 46 cm |
| Notes on Draft: | Predicted draft at Target Displacement (See Notes on Displacement below) |
| Target Displacement: | 3390 lbs / 1540 kgs |
| Notes on Displacement: | Fully loaded at Designed Waterline: People, Fuel, Motor(s), Consumables, etc. This is a better figure for evaluating a boat in real world conditions. |
| Maximum Horsepower: | 175 |
| Fuel Capacity: | 80 |
| Deadrise at Transom: | 19° |
| Deadrise at Midships: | 22° |
| Deadrise at Entry: | 50° |
| Waterline Length: | 6 ft 8 in / 5.1 m |
| Hull Surface Area: | 245 sq ft / 23 sq m |
| Notes on Hull Surface Area: | When considering a new boat build, the Hull Surface Area is a good indication of the relative size of one boat compared to another. |
